Description

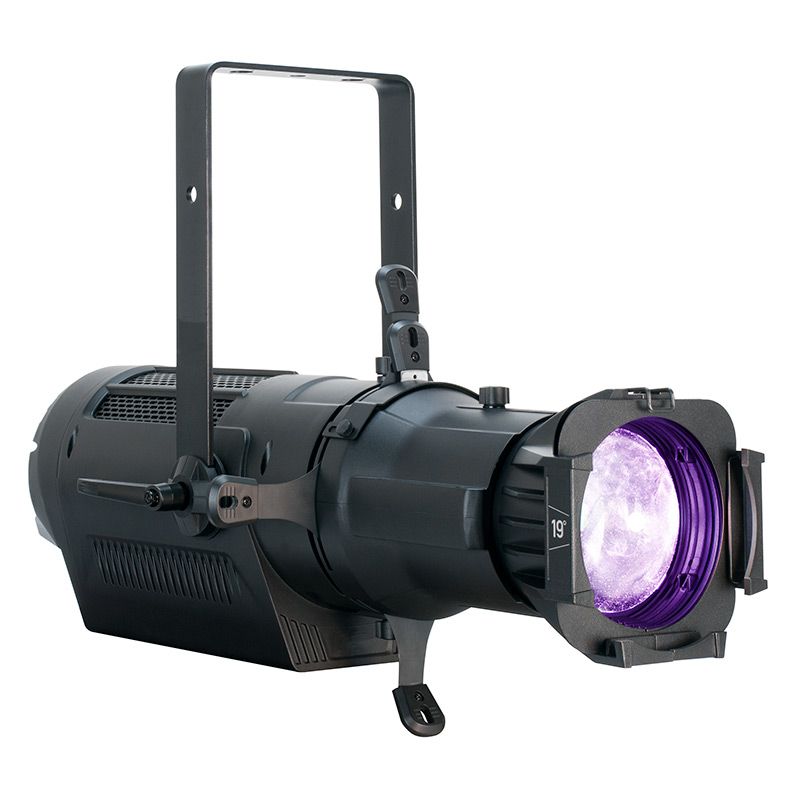

The Encore Profile Pro Color™ Ellipsoidal features a 250W RGBWAL (Red, Green, Blue, White, Amber, Lime) LED engine, >90CRI with 5°, 10°, 14°, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, dimming, dimming curves and dimming modes, flicker free operation for TV and FILM, adjustable refresh rate frequency, Locking 5pin XLR In/Out connectors and Locking Power Input, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (AC100-240v).
SOURCE
250W RGBWAL (Red/Green/Blue/White/Amber/Lime) LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
>90CRI 6,000 Total Lumens*
(*with 26° lens)
EFFECTS
Electronic Strobe and Dimming
Variable Dimming Curves and Dimming Modes
GOBOS
Supports “B” Size Metal, HT Transparency Gobos*
*Gobos and Holder not included.
CONTROL / CONNECTIONS
(3) DMX Channel Modes (6 / 9 / 12)
Adjustable Refresh Rate (900-1500, 25,000 Hz)
4 Button Control Panel
LED Menu Display
Locking 5pin XLR Connector In/Out
Locking Power Connector In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 27.1” (688mm) (Lens In)
Width: 111.3” (287mm)
Vertical Height: 17.7” (450mm)
Weight: 20.0 lbs. (9.1 kg)
ELECTRICAL / THERMAL
Quiet Fan Cooling
AC 100-240V – 47/63Hz
250W Max Power Consumption
Power Linking: 3pcs Max @120V / 8pcs Max @240V
14° to 113°F (-10° to 45°C)
APPROVALS / RATINGS
CE | cETLus (Pending) | IP30
INCLUDED ITEMS
(1) Locking Power Cable
OPTIONAL ACCESSORIES:
- EP Lens 5 (5° Lens) $229.95
-
EP Lens 10 (10° Lens) $229.95
-
EP Lens 14 (14° Lens) $229.95
-
EP Lens 19 (19° Lens) $229.95
-
EP Lens 26 (26° Lens) $229.95
-
EP Lens 36 (36° Lens) $299.95
-
EP Lens 50 (50° Lens) $299.95
-
EP Lens 15-30 (Adjustable 15° to 30° Lens Assembly)
-
EP Lens 25-50 (Adjustable 25° to 50° Lens Assembly)
- Clamp
- Safety Cable
