Description
The American Audio APX CS8 Column AC Powered PA System is lightweight, portable and feature packed. Offering an impressive output from a very compact column system, it is a great choice for live PA, musicians, and mobile entertainers looking for an extremely portable PA setup. The system features an 8-input mixer with Bluetooth TWS (True Wireless) playback, SD Card input, USB input, mini jack input, two XLR inputs and two ¼-inch stereo inputs.
The APX CS8 is powered by a Class-D amplifier with an 8-inch woofer. It has 3 columns, one with four (4) 2.5 drivers, and two spacers.
The System includes: (1) 8-inch active subwoofer, (1) column speaker with four 2.5-inch drivers, (2) spacer.
SYSTEM INCLUDES:

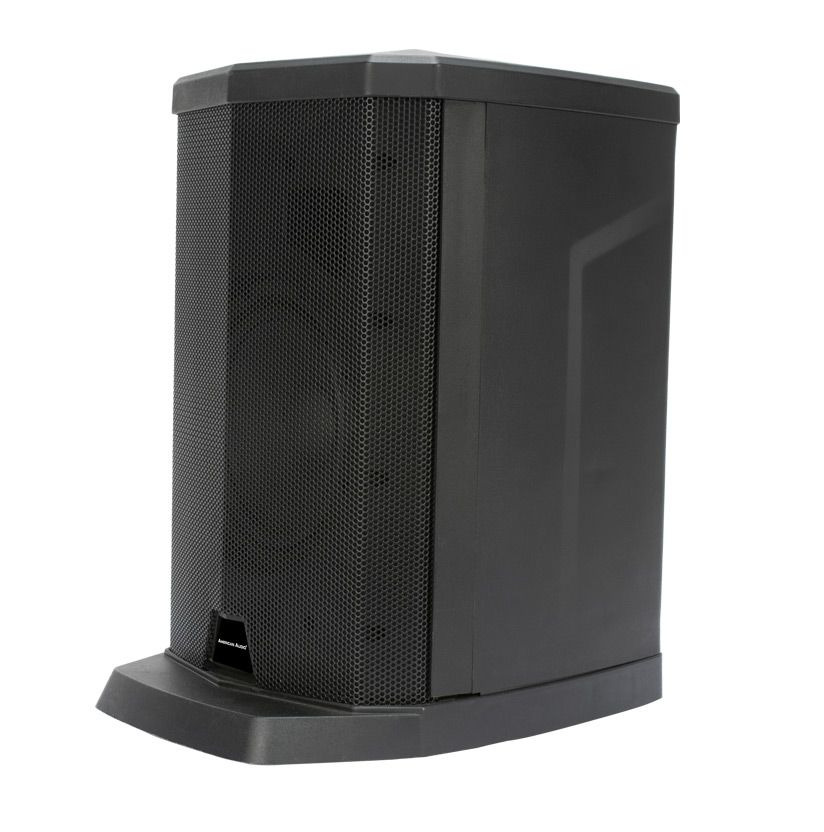

• (1) 8-inch Subwoofer

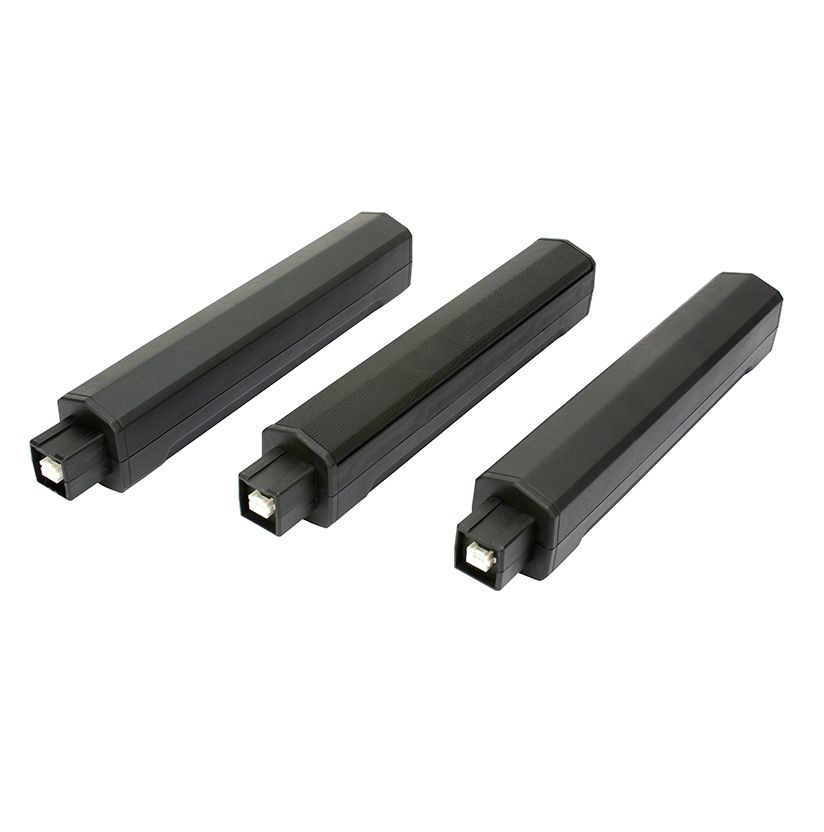

• (1) Column with four 2.5-inch neodymium Speakers
• (2) Spacers
Speakers: 8-inch Column Speaker with subwoofer and 4x 2.5inch drivers
System type: AC Powered subwoofer with four treble-reflex enclosures
SPL Output: 108 dB max
AC Input: AC115V~230V 50/60HZ
Amplifier: 100W Class-D Power System
Output Connectors: XLR output
Mixer Input Impedance: Ch1-4 inputs (2 Mono Mic/Line, Stereo)
Signal Indicators: Main Output LED Ladder
Grill: Power coated perforated steel

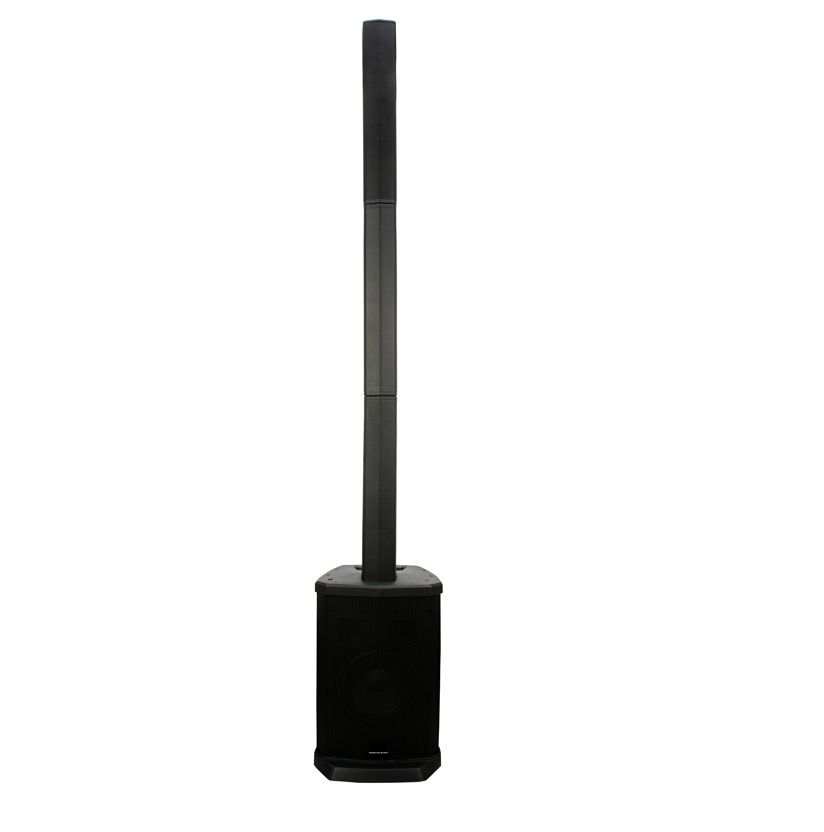

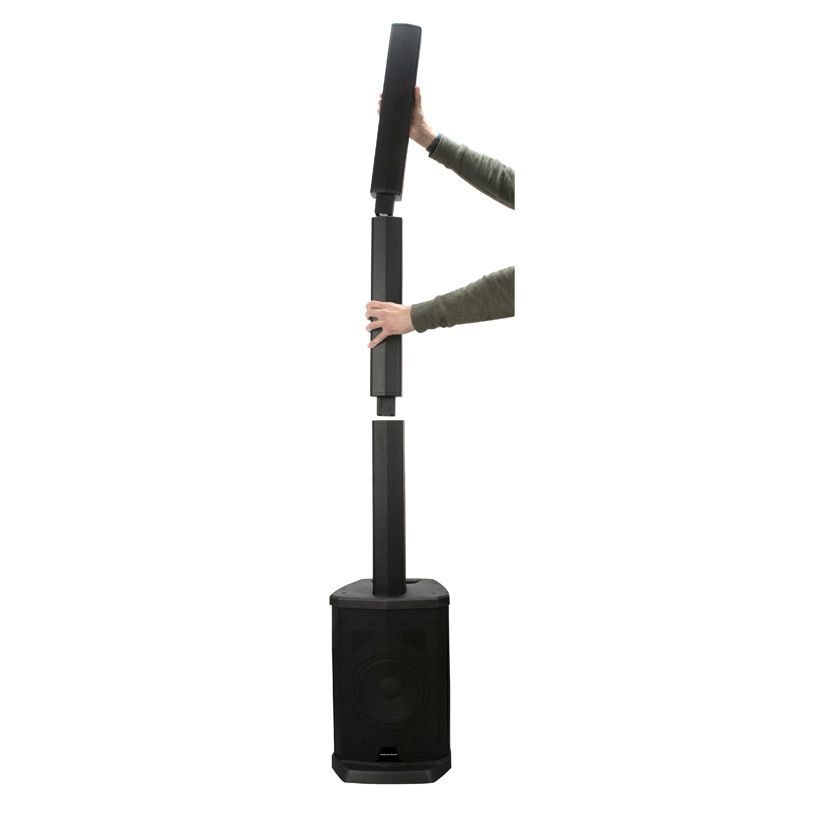

Extended Position (3 columns):
• Dimensions: 15.7”x12.5”x73.1” / 399×317.9×1856.6mm
• Weight: 40 lbs. / 18 kg.
Compact Position 2 (only 2 column):
• Dimensions: 15.7”x12.5”x54.6” / 399×317.9×1386.6mm
Compact Position 1 (only 1 column):
• Dimensions: 15.7”x12.5”x36.1” / 399×317.9×916.6mm

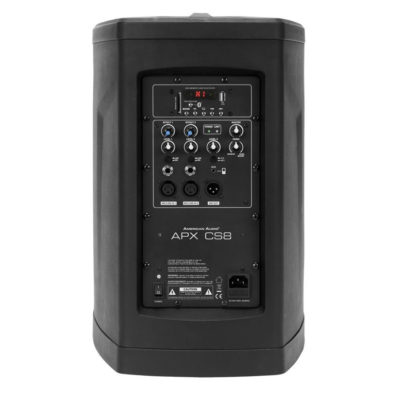

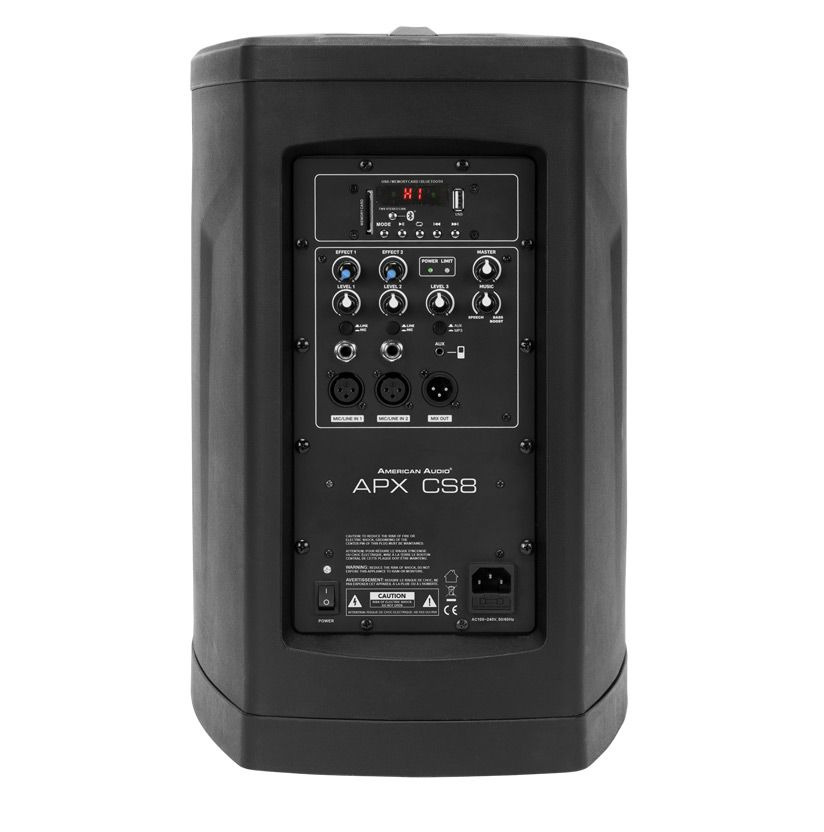

Rear Panel Features:
• 8 input mixer with line out
• Two (2) Mic/Line Input (XLR)
• Two (2) Guitar/Line Input (1/4″ Stereo)
• 1/8” stereo Aux Input
• TWS (True Wireless Stereo) BLUETOOTH® Connection
• SD Card reader
• USB Input
• Line Output (XLR)
• Two (2) Echo Adjustment Potentiometers
• Three (3) Channel Volume Adjustment Potentiometers
• One (1) Master Volume Adjustment Potentiometers
• One (1) Bass Boost Volume Adjustment Potentiometers
