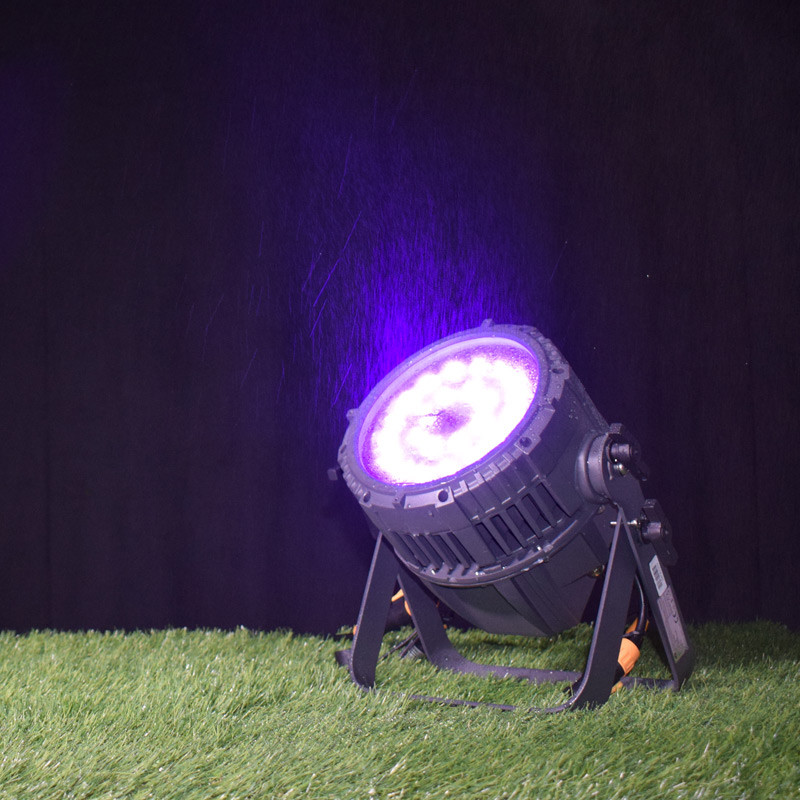

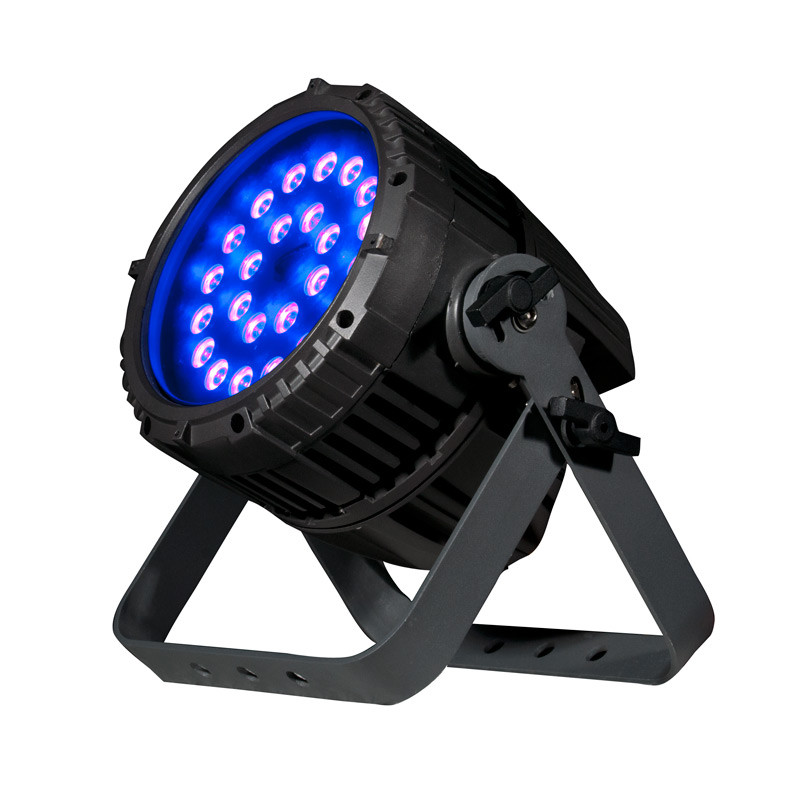

The UV 72IP produces a high intensity ultraviolet light designed for outdoor performance stages, theatrical performances and special effects productions. This all metal, IP65 outdoor rated professional fixture features ADJ’s WiFLY EXR wireless DMX and is powered by twenty-four 3W UV LEDs.

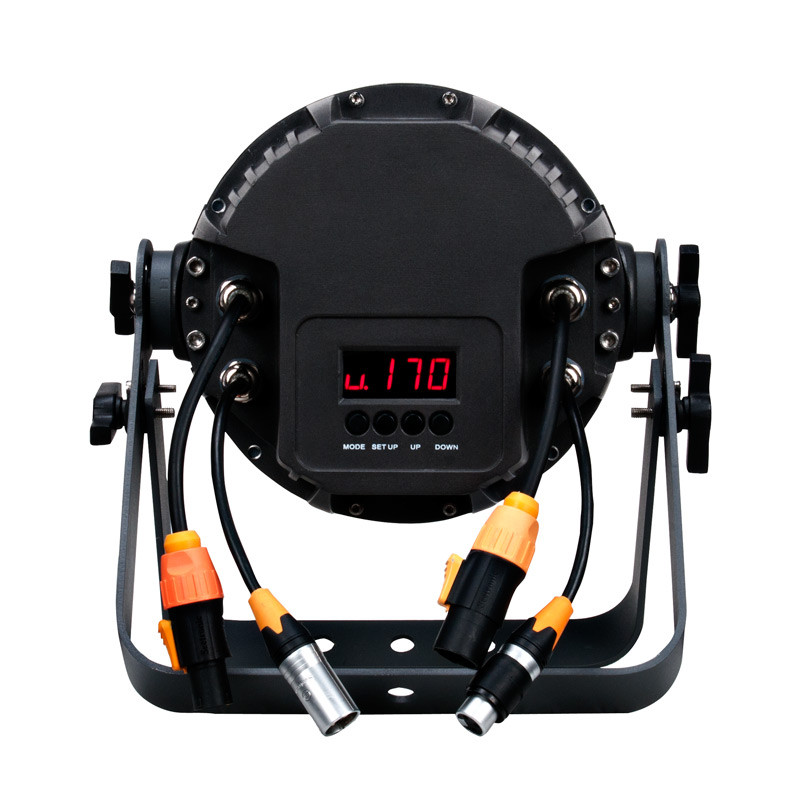

The UV 72 IP is equipped with a 4-button DMX digital display, Seatronic water proof Powerkon to daisy chain power and 3-pin DMX IP rated In/Out connections. Includes a scissor yoke allows fixture to be hung or set on the ground.
Specifications
Optical:
• 24x 3W UV LEDs
• Life Expectancy: 50000 hours
• LUX: 235 @ 2M; 57.7 @4M
• Beam Angles: 33-degrees
• PWM frequency: 1000 Hz
Connections:
• 3-pin DMX IP rated In/Out connections
• With Wired Digital Communication Network
• Seatronic water proof Powerkon connectors to daisy chain power
Control:
• Control Protocol: DMX-512, WiFLY EXR Wireless DMX (up to 2,500 feet/760M – open line of sight)
• 3 DMX Channels:1/2/3 Channels
• Remote Control: WiFLY EXR DMX, UC-IR & Airstream IR Compatible
• 3 Operational modes: UV Dimmer Mode; Fade Mode; and DMX Controlled
Specifications:
• IP65 outdoor rated
• Scissor yoke allows fixture to be hung or set on the ground
• 0-100% Electronic Dimming
• Strobe- Flash Rate in Hz from low to Max: 0.2Hz-11Hz
• Dimmer Curves: 5 Dimmer Modes
• Flicker Free
Electrical:
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Draw: 87W, 0.9Amps @ 120V/60Hz; 84W, 0.5Amps @220V/50Hz
Dimensions:
• Dimensions (LxWxH): 8.25” x 11.50” x 8.50” / 208.5 x 292 x 215mm
• Weight: 12 lbs. / 5.5 kg.
Certifications:
• ETL Approved
• CE
• IP65 outdoor use
